Area of application, technical process and effects

Pharmaceutical manufacturing, research and quality control laboratories are undergoing a fundamental transformation towards Lab 4.0 – digitally networked environments where instruments, execution systems and data platforms communicate in real time. Within this architecture, the analytical balance has historically represented one of the most persistent weak points in the laboratory data chain. Most balances still rely on manual data entry, paper printouts or middleware software to transfer weighing data into LIMS, MES or ERP systems — each step introducing transcription risk, data integrity gaps and additional validation burden.

For a balance to function as a genuine node in a digital laboratory infrastructure, connectivity cannot be an afterthought. The instrument must support the communication protocols already in use across the laboratory environment, rather than requiring a dedicated middleware layer to bridge the gap.

OPC UA — the open, machine-to-machine communication standard increasingly adopted across pharmaceutical manufacturing and process automation — enables any compatible client to subscribe to live instrument data, read status information and trigger measurement sequences without driver installation, dedicated PCs or middleware servers.

Laboratories whose systems communicate over standard HTTP can alternatively use REST APIs for lightweight, direct integration with modern LIMS platforms. Direct file-based transfer addresses environments where data consumption from shared network locations is already established. At the network level, LDAP centralises user authentication against existing directory services, while NTP synchronises time-stamps across the instrument fleet — a prerequisite for consistent, traceable audit trails.

The Sartorius Cubis^® II implements this full protocol stack natively, at the instrument level. For example, integration of a Cubis^® II balance into a Biotech MES system was recently achieved thanks to the embedded OPC UA server acting as a “plug-and-play” interface.

Consequently, validation of the connection was completed using standardised documentation, requiring no custom engineering effort.

Achieving 21 CFR Part 11 and EU Annex 11 compliance at the balance typically involves a fundamental archi-tectural choice: deploy a centralised management platform — with the associated server infrastructure, software validation, licence costs and revalidation cycles — or accept the compliance risk of paper-based records and manual data handling.

A third approach embeds all required technical controls directly in the instrument’s control unit: user authentication with role-based access, electronic signatures and a tamper-evident audit trail. Compliance is generated at the point of measurement, independently of any external software qualification. The validation scope is contained to the instrument itself, and adding further balances to the laboratory network does not expand the compliance infrastructure.

Beyond regulatory compliance, this embedded architecture also changes the cybersecurity profile. Server-dependent platforms introduce a general-purpose software stack requiring regular OS patching, vulnerability monitoring and IT lifecycle management — each representing overhead and potential requalification triggers. In contrast, running compliance logic within hardened, embedded firmware eliminates the OS patch cycle entirely. By removing the application server and limiting network exposure, this approach aligns closely with IEC 62443 security zone principles, offering a significantly smaller attack surface. The Cubis^® II natively operates on this secure, embedded model.

As laboratories face growing pressure to do more with fewer resources — skilled personnel are increasingly difficult to recruit and retain, while regulatory requirements continue to rise — the standardisation of analytical workflows directly at the instrument level is becoming operationally relevant.

One mechanism for achieving this is application-level guidance embedded in the balance terminal itself. Rather than relying on the operator to follow external SOPs, the instrument guides the user through a defined procedure, enforcing acceptance criteria automatically and flagging deviations immediately. On the Cubis^® II, this is implemented through QApps: small, pre-qualified applications running directly on the balance.

An example of this instrument-driven automation in a compliant way is the Sartorius Linkit^® AX, a semi-automated aliquoting solution for bioprocessing. Rather than investing in expensive, fully automated filling lines, facilities can use the Cubis^® II as the intelligent control unit. Paired with a dedicated QApp, the balance directly controls a peristaltic pump to fill up to ten single-use bags simultaneously. In a recent cell and gene therapy application, transitioning from manual manifold filling to this balance-controlled process reduced the preparation time for growth media from two full days to approximately four hours. Because the balance actively regulates the pump speed — including capacity ramp-down and reverse runs — and automatically generates 21 CFR Part 11-compliant batch records, the process becomes highly repeatable and fully traceable.

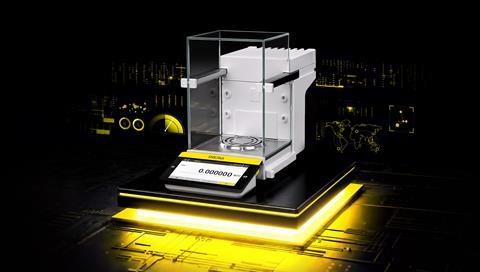

Explore a New Weighing Era and Discover Cubis^® III.
